Industrial Hydraulic Lift Table
Reliable lifting solution for industrial use.Lift with power, work with precision.

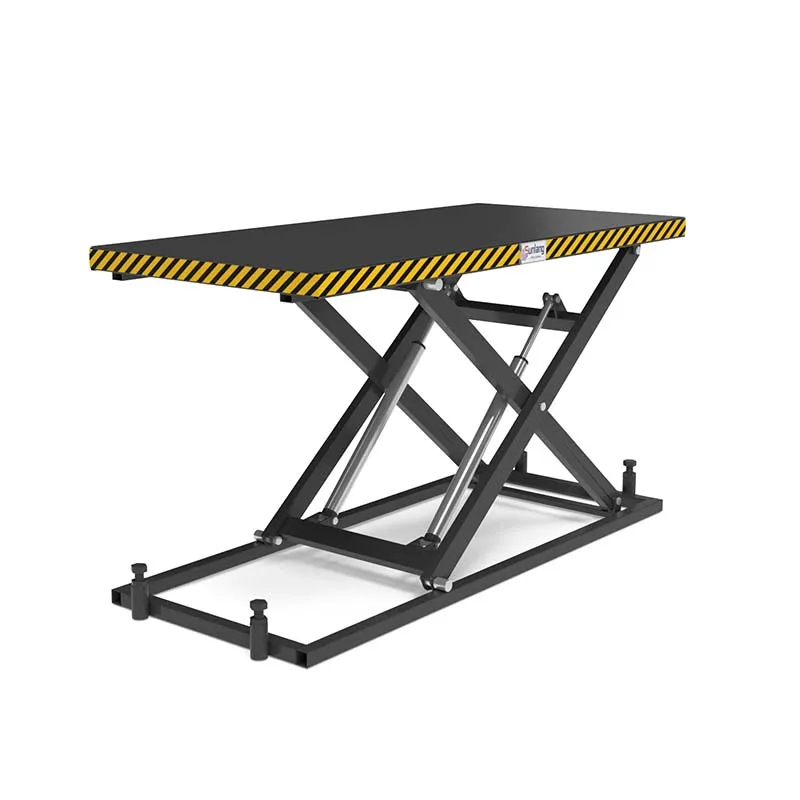

Scissor Lift Table For Sale
About Scissor Lift Table

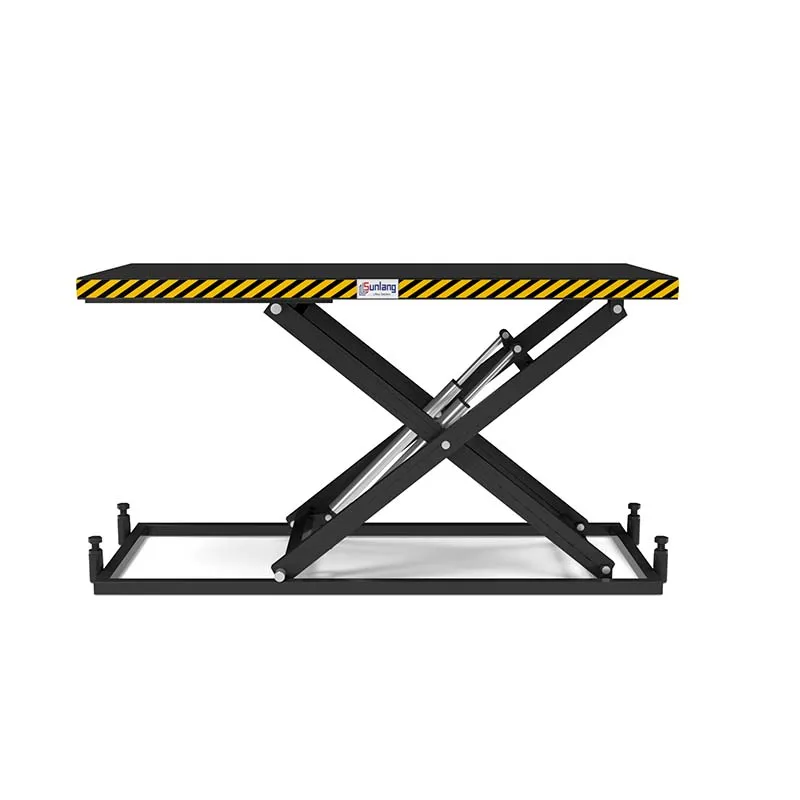

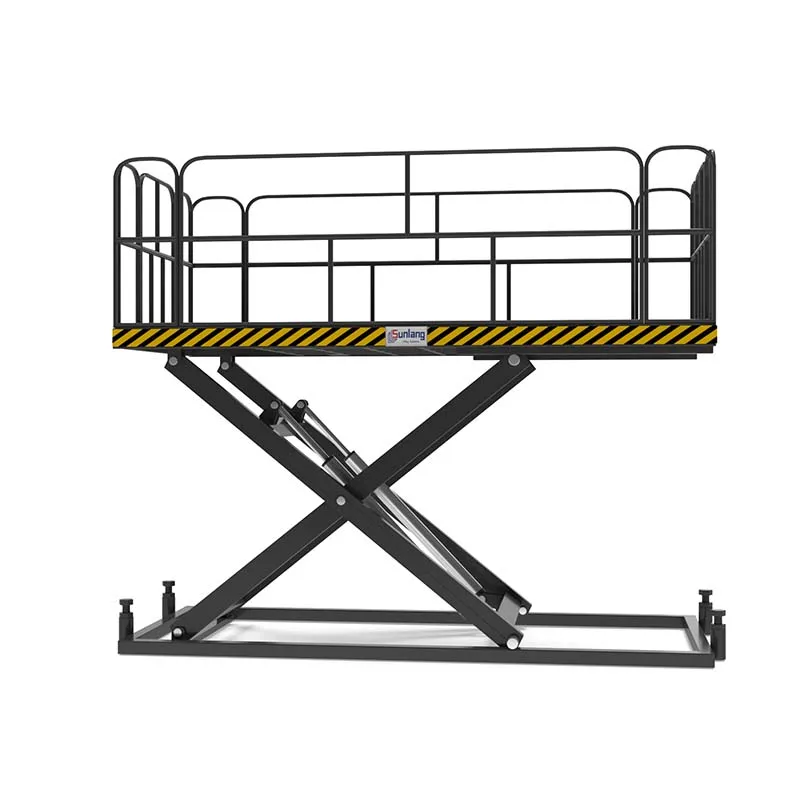

Scissor lift table is a lifting device that uses a hydraulic system and scissor-style mechanism to raise and lower heavy loads. It is commonly used in factories, warehouses, and loading areas for material handling and work positioning.
Key Features & Options:

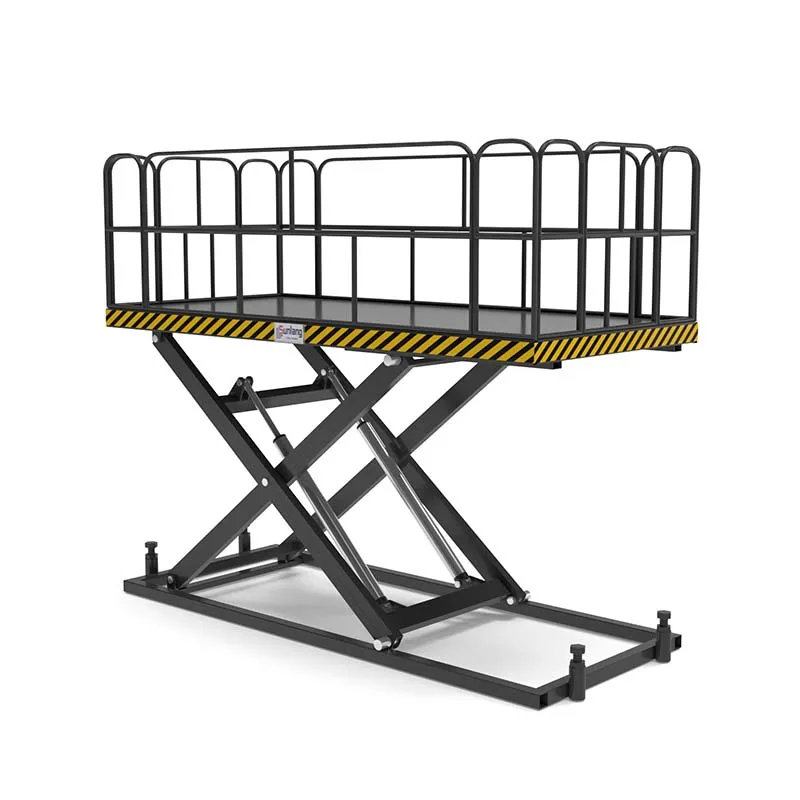

The hydraulic scissor lift table is mainly composed of a heavy-duty platform, scissor arms, hydraulic cylinders, a hydraulic power unit, an electric control box, and a rectangular steel tube base.
The hydraulic system consists of a high-performance pump and cylinders that provide smooth and stable lifting with minimal noise. It includes safety features like overflow and pressure relief valves to prevent overload. Depending on requirements, the hydraulic power unit can be configured as AC, DC, or manual, ensuring flexible and reliable operation.
Equipped with push-button controls on the control box, foot pedal switch, and optional wired or wireless remotes. An emergency stop button adds an extra layer of safety.

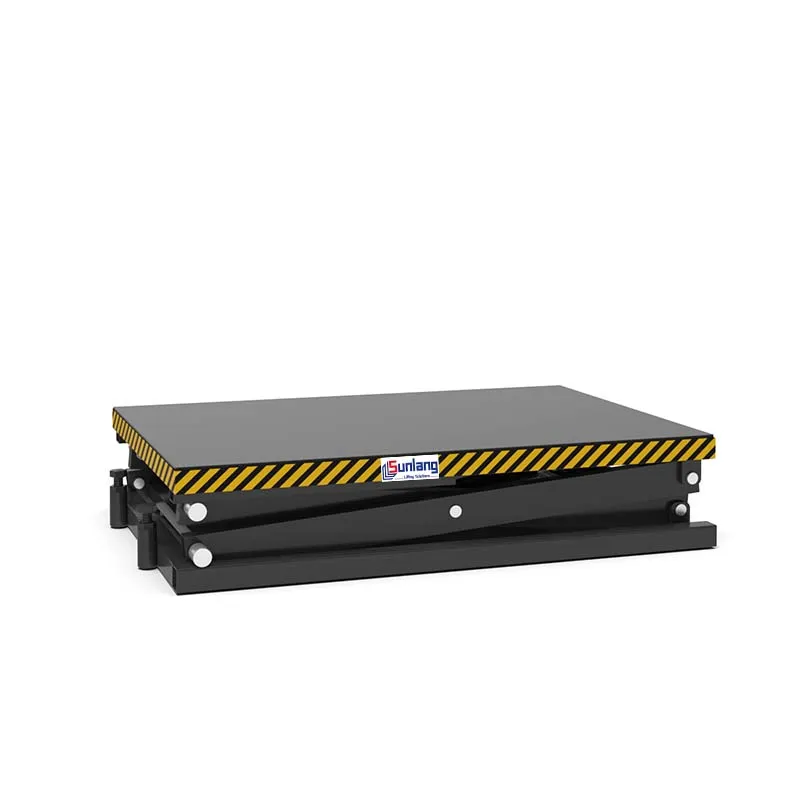

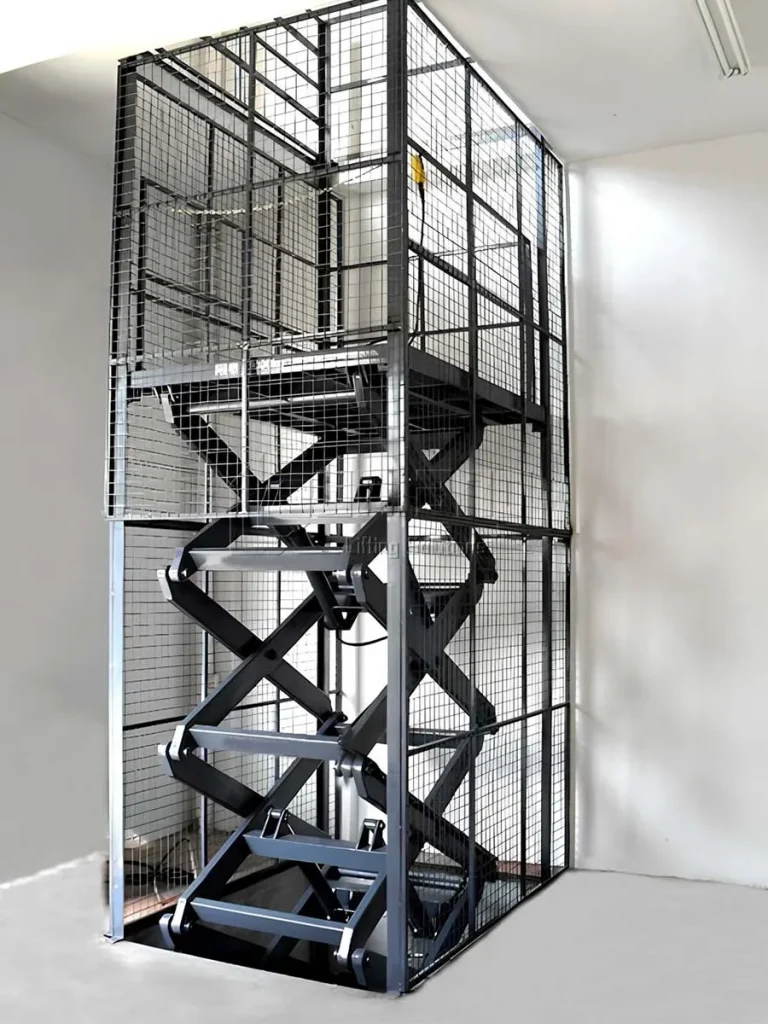

It is widely used for material handling in factories and warehouses, loading and unloading at docks and platforms, and height adjustment on production lines. It can also be customized for multi-floor goods transfer with guide rails, and is suitable for outdoor use with weather-resistant options.
| Parameter | Details |
|---|---|
| Platform Size | Customizable, e.g., 2000mm × 1500mm |
| Pit Size | Based on lowered height, e.g., 2100mm × 1600mm × 300mm |
| Max Lifting Height | Typically 1000mm – 6000mm, customizable as needed |
| Lowered Height | 180mm – 350mm, depending on structure and load |

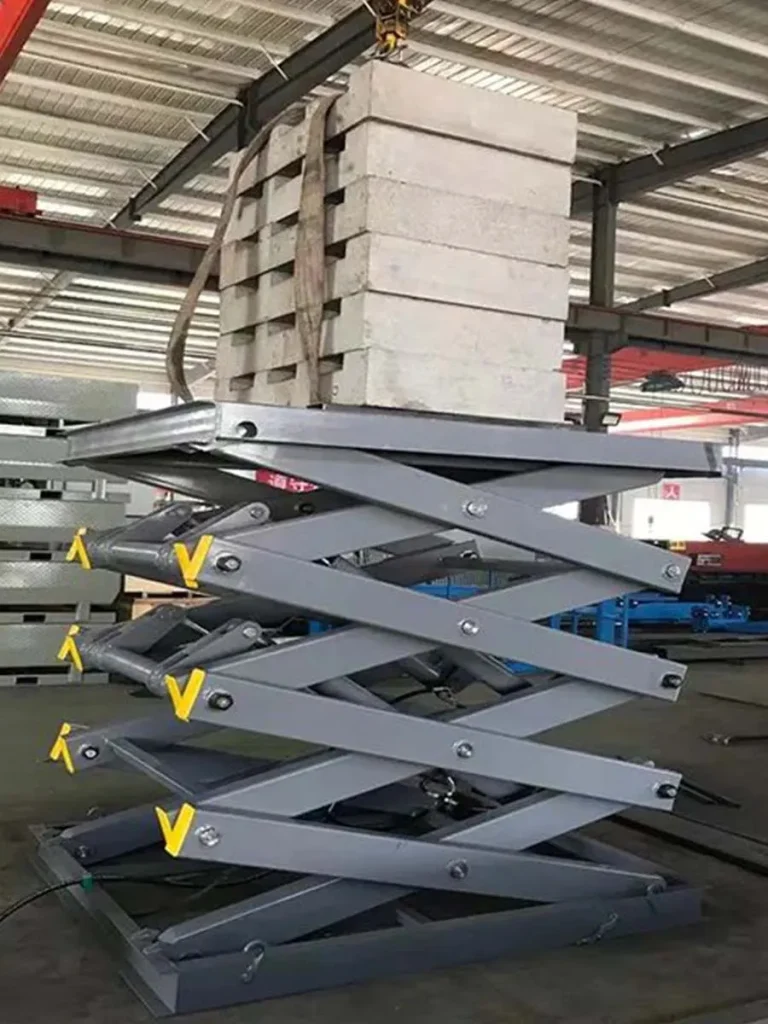

| Scissor Structure | Single, double, or multi-stage scissor |
| Control Method | Push-button, foot pedal, or optional remote control |

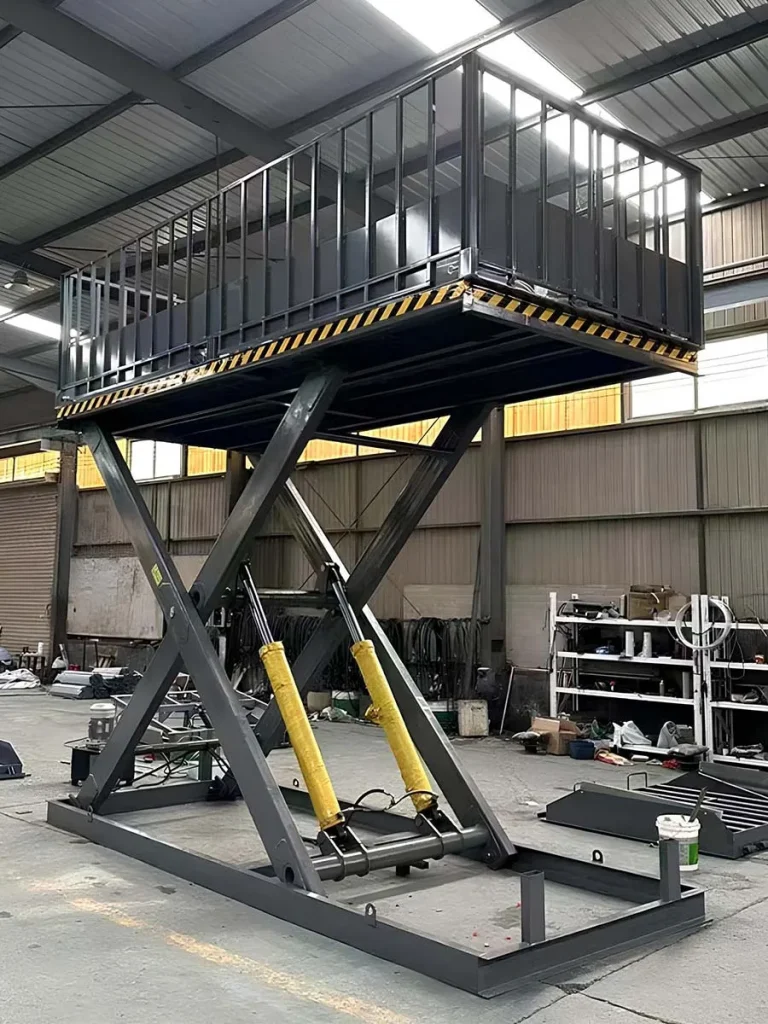

| Safety Railing Option | Optional fixed or foldable railings for enhanced safety |
| Safety Features | Limit switches, emergency stop, anti-fall device, load display, etc. |
| Power Supply | Supports AC380V / AC220V / DC24V / manual pump; voltage customizable by region |
Application

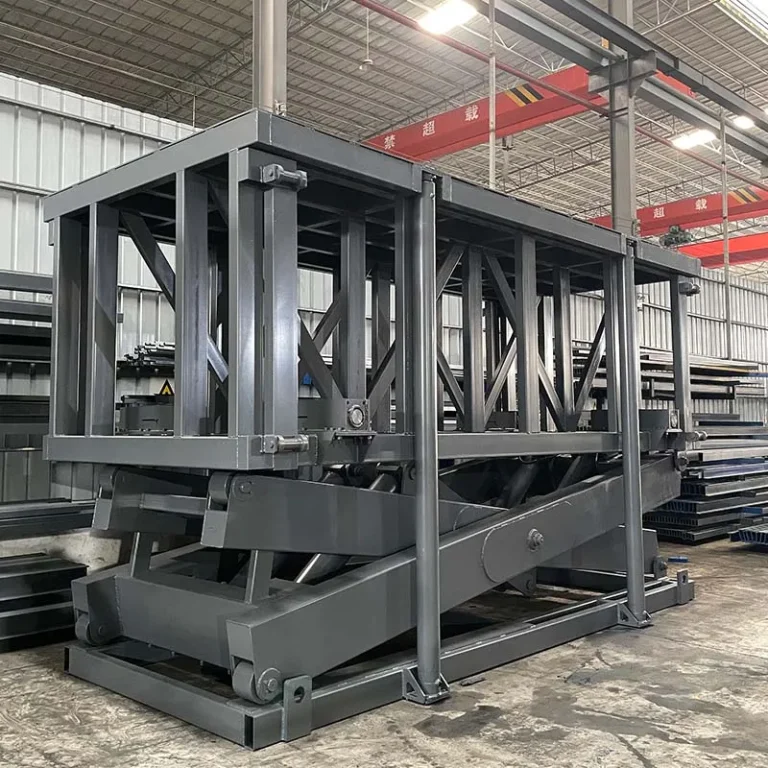

Custom Solutions. Seamless Flow
Scissor Lift Manufacturers
Our scissor lift platform are built using internationally compliant steel materials, with both structure and functionality independently designed and manufactured in-house. Equipped with hydraulic systems certified to national standards, they offer reliable performance, faster lead times, and more competitive pricing.
Why Choose Us?
Core Advantages
Direct Manufacturer
No middleman, lower prices, and faster production.
Reliable Quality
With extensive experience in crafting safe and reliable lifting equipment.

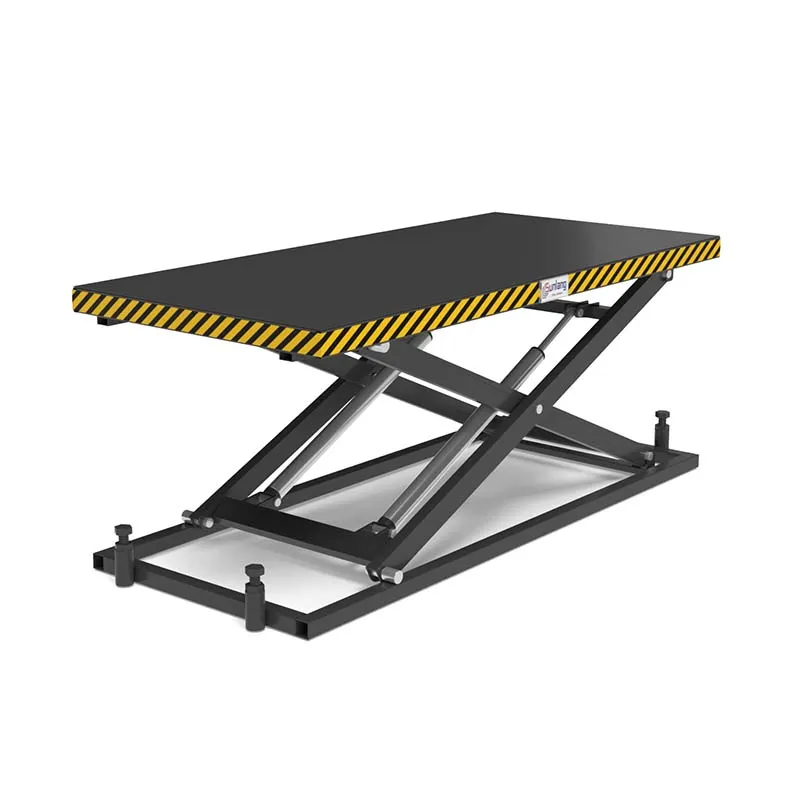

Full Customization
Tailored to your needs: load, size, height, and mobility.
Premium Materials
High-strength steel, durable hydraulic system, and multiple safety control features to ensure reliable operation.
Fast Delivery
Quick lead times, support for international shipping, and global delivery coverage.
Warranty & Support
Long-term maintenance guidance and a 1-year warranty on parts quality.
frequently asked question
Before buying, we want to figure out a few key things: the lifting height you need, the platform size, and the load capacity. Also, decide whether the lift will be installed on a flat surface or if you need a recessed pit installation.
If you’re handling lighter loads and don’t need to lift very high — say, up to around 2 meters — a single scissor lift is friendly option.
If you need to lift heavier loads or want something more stable, a double scissor lift is a great choice.

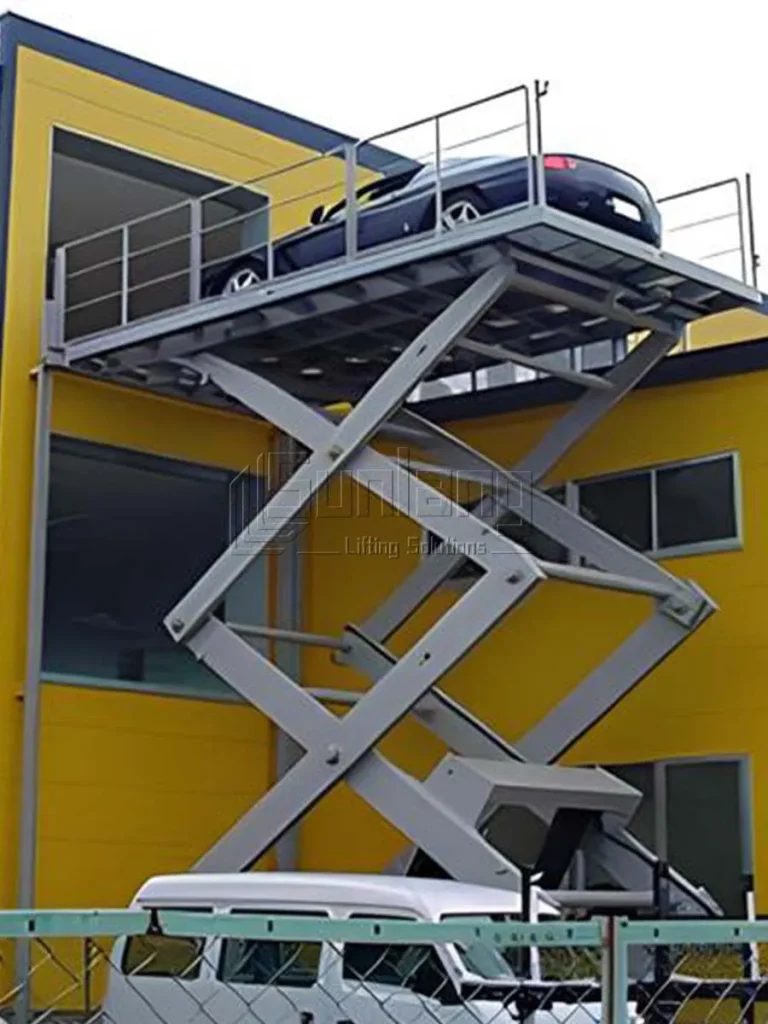

For taller lifting heights, like 3 meters or more, a multi-stage lift works really well.
We’re here to help you find the right fit based on your specific situation so you get the best results.
Depending on the model and customization, load capacities generally range from 500 kg to 6,000 kg, suitable for handling light to heavy industrial goods.
Mainly surface-mounted installation and pit-mounted installation. Surface mounting suits mobile or semi-permanent use, while pit mounting provides a flush floor level and is ideal for easy loading/unloading.
Standard safety features include mechanical locks, overload protection, safety toe guards, emergency stop buttons, and maintenance bars to ensure secure and compliant operation.
Most tables are equipped with a wired push-button controller for simple up/down operations. Options like foot pedals, wireless remotes, or PLC integration can also be provided for specific needs.
